Creating a New Tool

A PDQ Inventory tool contains the command to be run using the cmd.exe or PowerShell. Tools can be Remote, Local, or System. This section describes how to create and configure tools. (Enterprise mode is required to create and edit tools). Your own Tools cannot be called against more than one computer at a time.

An alternative to creating a new tool from scratch is to base a new tool on a tool downloaded from the Tools Library. Simply duplicate and rename the tool that is similar to the tool you need, then edit it to meet your requirements. Examining tools is also a great way to learn how tools are configured. For information about duplicating and editing tools, see Duplicating Tools.

NOTE: You can create a PDQ Deploy package with the command(s) used in this window by clicking Tools > Create PDQ Deploy Package. This launches PDQ Deploy and opens a new package window with the command entered. Configure the remainder of the package to your needs and click Save. (Enterprise mode and PDQ Deploy required to create a package.)

This section contains the following:

The Tool Window (Edit Mode)

Variables

Tools Examples

For more information on creating your own Tools, see the following:

VIDEO: Using Remote Commands in PDQ Inventory

Using Remote Commands in PDQ Inventory

(https://youtu.be/tUPVa5ArP_Y)

WEBCAST: PDQ Live! : Custom Tools & The Tools Library in PDQ Inventory

Custom Tools & The Tools Library

(https://youtu.be/2Tnu6Vcq-rg)

The Tool Window (Edit Mode)

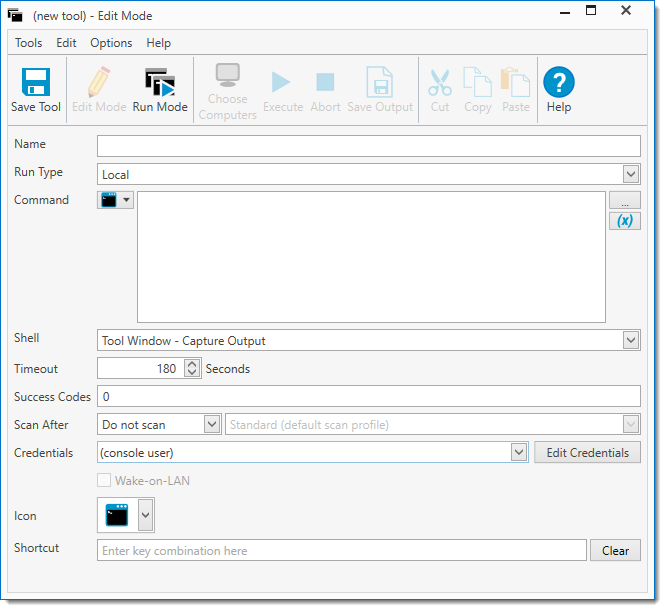

Tools are created within Edit Mode of the Run Command window. To access on the Main Console window click on Tools in the tree. On the Tools page, select the Tools Menu tab and click New > Tool.

The following table reviews each option in the Edit Mode of the Run Command window.

Item

Description

Name

The name of the tool.

You are likely to create many tools so it's important to name them clearly and consistently. We suggest using names that include a hint about what is contained in the command.

Run Type

The type of tool either Remote, Local (default), or System.

NOTE: Options available in this window are dynamically available depending on the type of tool chosen.



Remote

The commands run remotely on selected targets.

Local

The command runs on the local computer, not on the target. This is an important distinction, since a command run through the Tools menu would need to use variables and/or UNC pathnames to be able to perform the command against a target. For example, remotely opening the ADMIN$ share on a target is executed locally with a command, explorer.exe "\\$(Computer:TARGETHOSTNAME)\ADMIN$". This is the default tool type.

System

The tool will run from anywhere within the program without needing a computer to be selected. This is not typically checked if the program will be run on the local PDQ Inventory console (for example, opening up Active Directory Users and Computers). If left unchecked, a computer must be selected for the tool to be available.

IMPORTANT: System Tools cannot be used in conjunction with computer specific variables. For information see Computer Variables.

Command

The command of the tool. This is the command that will be run as though run from the Windows command or PowerShell. This can be a command line instruction, a path to an executable, or a script.

Choose between Command (cmd) or PowerShell for the Command.

You can write the path or use the file picker to browse to and select an executable or script file.

Insert a variable by selecting the variables button . It can include system, custom, and environment variables (such as %ProgramFiles% or %SystemRoot%). In addition to the normal environment variables, PDQ Inventory provides additional variables specific to computers to which a command would be run. Computer specific variables cannot be used in conjunction with a System Tool. For more details, see Computer Variables.

NOTE: Using the file picker will display the file name to be run. The script itself will not be displayed in the window.

Shell

The behavior of the output in Run Mode, Command window, or PowerShell window after launching the tool.



Tool Window - Capture Output

Upon launching the tool, the Run Command window is opened which captures the output. The output can then be saved to a .txt file.

No Shell - Ignore Output

The tool runs without a shell opening and output is not captured.

NOTE: The ability to use the Run Mode is disabled with this choice. The tool must be run in the main console window after it is created.

Close Shell on Completion

The shell (either Command or PowerShell) used to run the command is displayed while the command runs, but closes immediately upon completion.

NOTE: The ability to use the Run Mode is disabled with this choice. The tool must be run in the main console window after it is created.

Leave Shell Open

The shell (either Command or PowerShell) used to run the command remains open upon completion of the command.

NOTE: The ability to use the Run Mode is disabled with this choice. The tool must be run in the main console window after it is created.

Timeout

The length of time to run the command before it is automatically aborted (default is 180 seconds).

NOTE: Timeout is only available for a Remote Tool.

Success Codes

By default, 0 is selected, which means the command was successful. You can provide additional success codes in a comma-separated list.

NOTE: Success Codes are only available for a Remote Tool.

Scan After

Initiates an inventory scan after the command is run to identify the full inventory on each workstation. A scan is attempted on target computers even if the command fails.

You may choose whichever Scan Profile has been configured. The default Scan Profile is defined in Options > Scan Profiles. The most commonly used are Standard or Applications.

NOTE: The ability to Scan After is only available for a Remote Tool.

Credentials

The credentials that will be used for the listed computer(s). The user must be a local administrator on the target computer(s).

NOTE: Credentials are only available for a Remote Tool.



Edit Credentials

Click to edit the existing credentials or add a new set of administrator credentials.

Wake-on-LAN

Initiates a distributed Wake-on-LAN (WOL) event on all listed computers prior to running the remote command.

NOTE: Wake-on-LAN is only available for a Remote Tool.

Icon

The icon used to identify the tool.

If no icon is selected, it will default to either the Command or PowerShell icon as chosen for the shell type.

Shortcut

The keyboard shortcut used to launch the tool. Simply enter the key combination on your keyboard to assign a new shortcut. The shortcut takes the form of Modifier+Key and is created by selecting this field and then pressing the keys in the correct order. The valid modifiers are Shift, Ctrl, and Alt. Shift cannot be used by itself.

Examples include:

Ctrl+Alt+Q

Ctrl+Shift+8

Shift+Alt+B

Alt+F1

IMPORTANT: This shortcut should not conflict with any other in the application or it will not work properly.

Computer Specific Variables

You can use variables with tools. The Command Line field of the Custom Computer Tool window will accept environmental variables (for example, %PROGRAMFILES%, %WINDIR%, %SYSTEMDRIVE%, etc.), as well as variables defined within PDQ Inventory (variables are not case sensitive). The computer specific variables available within PDQ Inventory are as follows:

IMPORTANT: Computer specific variables starting with %TARGET are no longer supported and will need to be replaced with a computer variable starting with $(Computer:TARGET. Additionally, computer specific variables cannot be used when the System Tool is checked. For more information, see System Tool.

Computer Specific Variable

Description

$(Computer:TARGET)

The name of the computer.

$(Computer:TARGETHOSTNAME)

The full domain name of the computer.

$(Computer:TARGETIPADDRESS)

The IP address of the computer.

$(Computer:TARGETMACADDRESS)

The MAC address of the computer.

$(Computer:TARGETOSNAME)

The name of the computer's operating system

$(Computer:TARGETSERIALNUMBER)

The serial number of the computer, if available.



Tools Examples

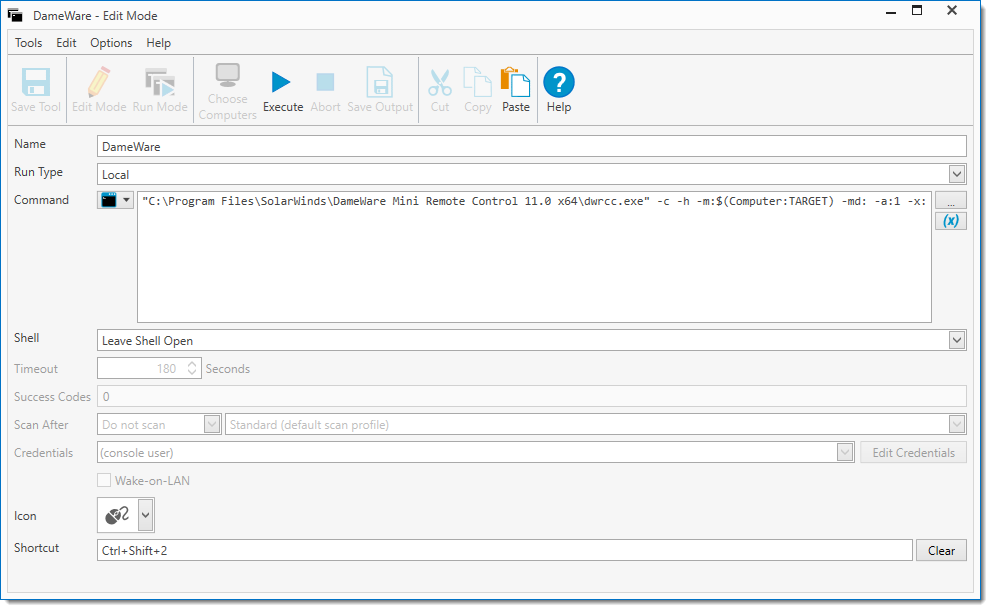

The example below shows a Tool which opens a DameWare 11 remote control session against a selected computer, using the Command "C:\Program Files\SolarWinds\DameWare Mini Remote Control 11.0 x64\dwrcc.exe" -c -h -m:$(Computer:TARGET) -md: -a:1 -x:

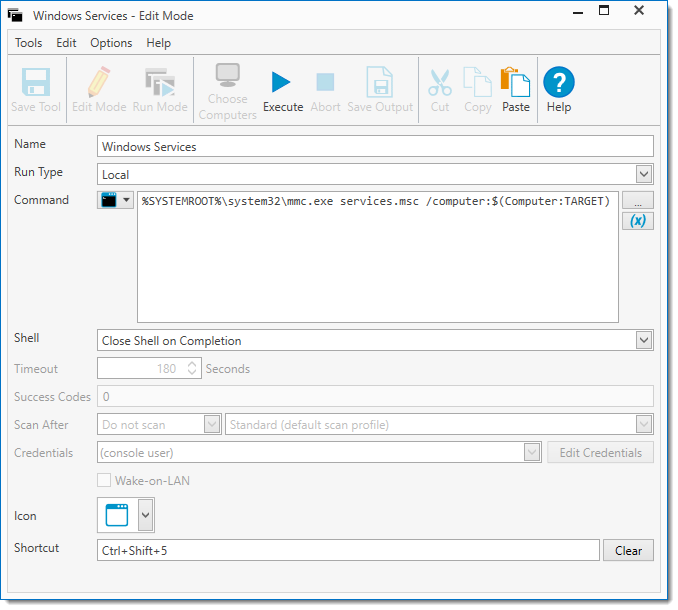

The example below shows a Tool which opens MMC and loads the Services.msc snap-in and connects to the selected computer, using the Command %SYSTEMROOT%\system32\mmc.exe services.msc /computer:$(Computer:TARGET)

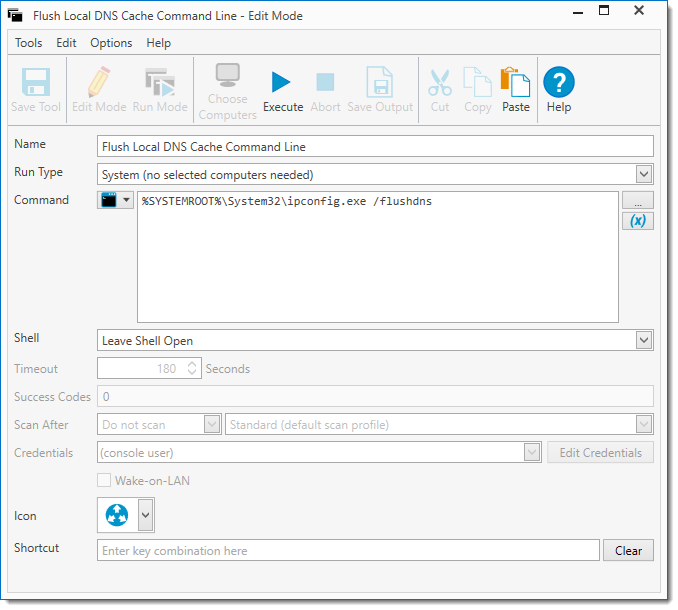

The example below shows a Tool which flushes your DNS cache in Windows, using the Command %SYSTEMROOT%\System32\ipconfig.exe /flushdns
