Files & Directories Scanner

<< Click to Display Table of Contents >>

Files & Directories Scanner

The Files & Directories scanner is a configurable scanner that scans for files and or directories as determined by the Files & Directories Scanner Settings for a particular scan profile. (Enterprise mode is required.) This information can be viewed on the Files & Directories page of the Computer window or via the Files & Directories table in a report. Some information is only available if the file contains header information, which is typically most .exe and .dll files. In order for the Files & Directories scanner to function properly, a file or directory will need to match at least one pattern in the Include Pattern(s) field.

Inventory comes with a prebuilt scan profile that uses the Files & Directories scanner called Windows EXEs.

Note: Deleting a Files & Directories scanner (or scan profile that includes one) deletes all the records it gathered (except those also scanned using a different scanner). This will not delete any actual files or directories.

To see the Files & Directories scanner in action, review the following video. (The video is from Inventory 8 when the scanner was called the Files scanner and did not include directories.) The patterns included in the screenshot below is the same scan profile used in the video.

VIDEO: Files & Directories Scanner

Files & Directories Scanner

(https://youtu.be/MmMtfSHiUeg)

Files & Directories Scanner Settings

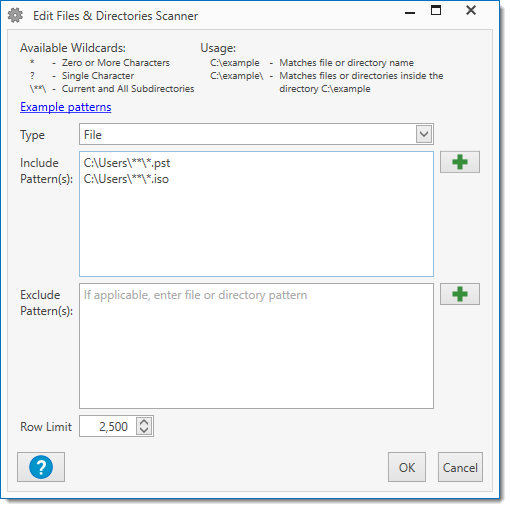

Configure the Files & Directories scanner settings in the Edit Files & Directories Scanner window (Enterprise mode required). Multiple Files & Directories scanners can be added to one scan profile with different settings per scanner. The example below will return all .pst and .iso files in the C:\Users directory including all subdirectories.

To open the Edit Files & Directories Scanner window, do one of the following:

When creating a new scan profile:

oClick New Scanner > Files & Directories (or Computer > New Scanner > Files & Directories)

oClick Scan Profiles (or Computer > Scan Profiles) then New > Add > Files & Directories

When editing an existing scan profile:

oClick Scan Profiles , select Scan Profiles in the tree, or click Computer > Scan Profiles then double-click an existing Files & Directories scanner or select it and click Edit.

Item

Description

Type

Choose from File, Directory, or Both.

Include Pattern(s)

Enter file patterns to match on the target computer (one per line). Click on the Plus icon to automatically include common patterns. You can choose from the following:

* for zero or more characters

? for single characters

\**\ for current and all subdirectories

?:\ for all drives

%SYSTEMDRIVE%\Users\**\ for all users

%PROGRAMFILES%*\**\ for all program files, including program files (x86)

%SYSTEMROOT%\System32\* for System32

NOTE: Wildcards must be used in place of regular expressions or context variables.

Exclude Pattern(s)

Enter file patterns to exclude from the search on the target computer (one per line). Click on the Plus icon to automatically include common patterns. You can choose from the following: Zero or more characters, Single characters, Current and all subdirectories, All drives, All users, All program files, and System32 (see above).

NOTE: Wildcards must be used in place of regular expressions or context variables.

Row Limit

Specify the maximum number of items to be returned from the target (the default is 2,500 rows).

WARNING: Setting the Row Limit too high can cause performance issues.
